รายละเอียดสินค้า:
|
| Application: | Biomass fuel production | Key Selling: | Flat Die+ Rollers |
|---|---|---|---|
| Usage: | Making wood pellets | Spare Parts: | Flat Die+ Rollers |
| เน้น: | biomass Pellet Production Line equipment,Biomass Fuel Pellet Production Line,Automatic Biomass Fuel Pellet Equipment |
||
Process:
The material handling system primarily encompasses material storage, supply, and pretreatment.
Waste biomass raw materials must first be stored to ensure a continuous supply for subsequent production.
The raw materials are then pulverized and cleaned to remove impurities and meet pellet production requirements.
The pellet production system is the core component of the biomass fuel pellet production line.
In this process, the pretreated raw materials are fed into the pellet machine for compaction.
The pellet machine uses high pressure and appropriate temperatures to form the raw materials into pellets, adding a certain amount of binder during the process to ensure pellet strength.
The compacted pellets contain a certain amount of moisture and require dehydration in a drying system.
The drying system typically uses heat transfer to expose the pellets to high-temperature airflow, gradually reducing their moisture content and achieving the desired drying effect.
The dried pellets are then cooled in a cooling system.
Finally, the cooled pellets are fed into the packaging system for packaging.
| Model | Power | Mold Hole | Capacity for industrial solid | Capacity for biomass | Pellet size(mm) |
| MKYK-36 | 45kw | 36 | 0.5-1.0 | 1.0-1.5 | 32*32*50-100 |
| MKYK-48 | 75kw | 48 | 1.0-1.5 | 1.5-2.5 | 32*32*50-100 |
| MKYK-72 | 110kw | 72 | 2.0-2.5 | 2.5-3.5 | 32*32*50-100 |
| MKYK-90 | 132kw | 90 | 2.0-2.5 | 3.5-5.0 | 32*32*50-100 |
| MKYK-120 | 200kw | 120 | 3.0-4.0 | 4.0-6.0 | 32*32*50-100 |
| MKYK-150 | 250kw | 150 | 4.0-6.0 | 6.0-10.0 | 32*32*50-100 |
The biomass fuel pellet production line is a complete set of equipment, including a material handling system, pellet production system, drying system, cooling system, and packaging system.
Through the coordinated operation of each link, this production line processes waste biomass raw materials into high-quality fuel pellets.
Finished product display
The production process of biomass fuel pellets undergoes multiple steps to ensure consistent product quality. Different packaging sizes can be customized to meet your needs, providing a wide range of options.
With the increasing demand for sustainable energy, biomass fuel pellet production lines are expected to see wider application in the future.
For more information on process design, equipment layout, plant construction plans, single machine equipment quotas, turnkey quotas, etc., please feel free to contact us.

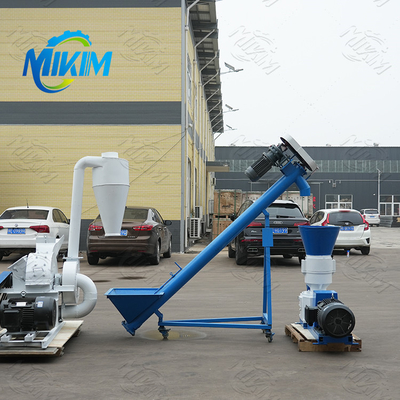

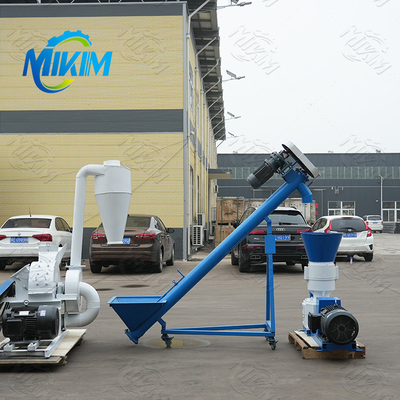

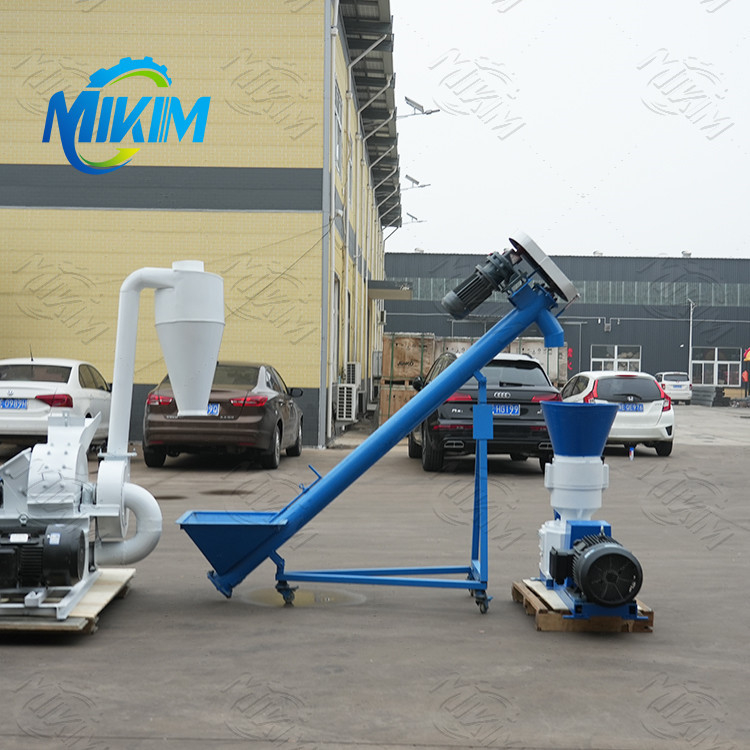

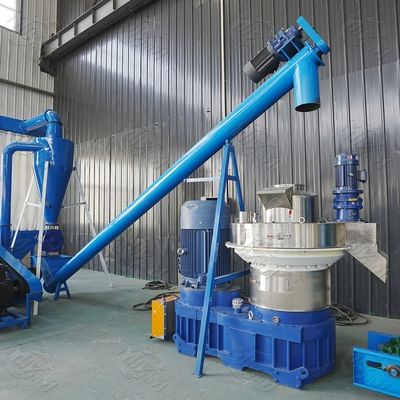

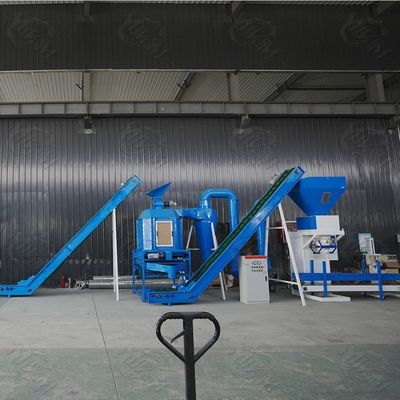

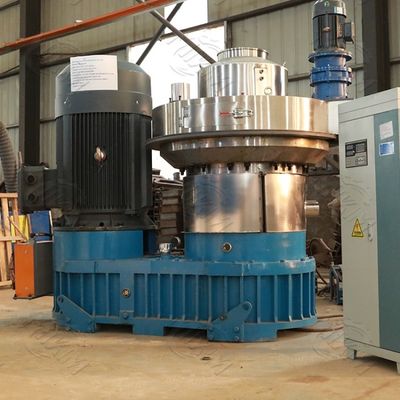

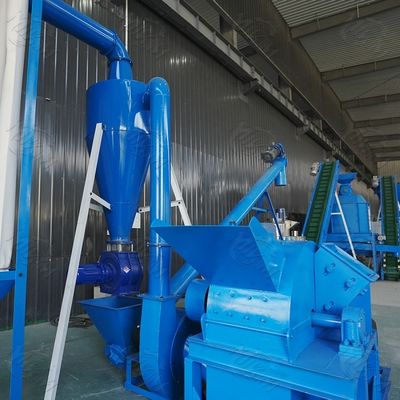

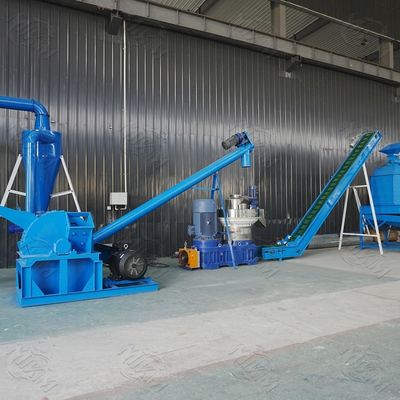

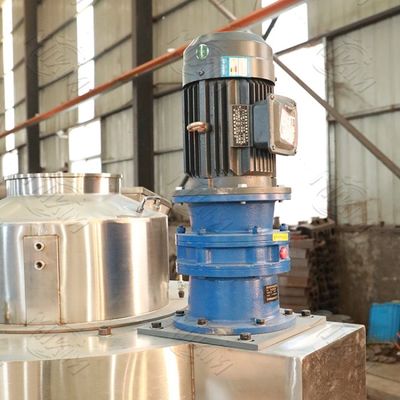

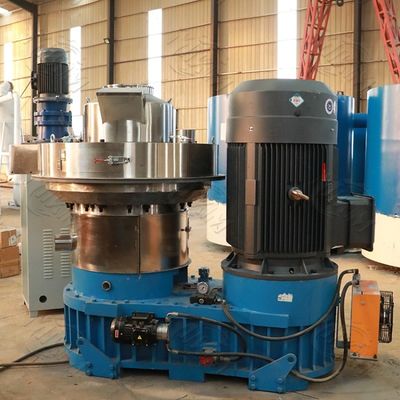

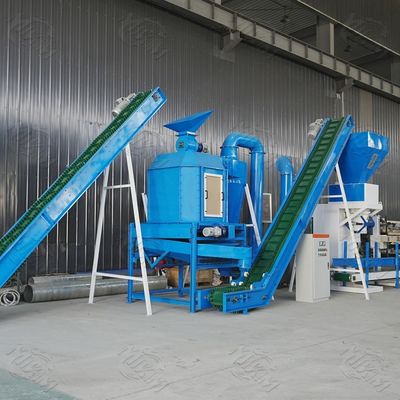

Equipment Photos
Qualifications and Honors
